The latest driver is 52.43 from MOS 3.19. I don't think that your gra-card is the reason.

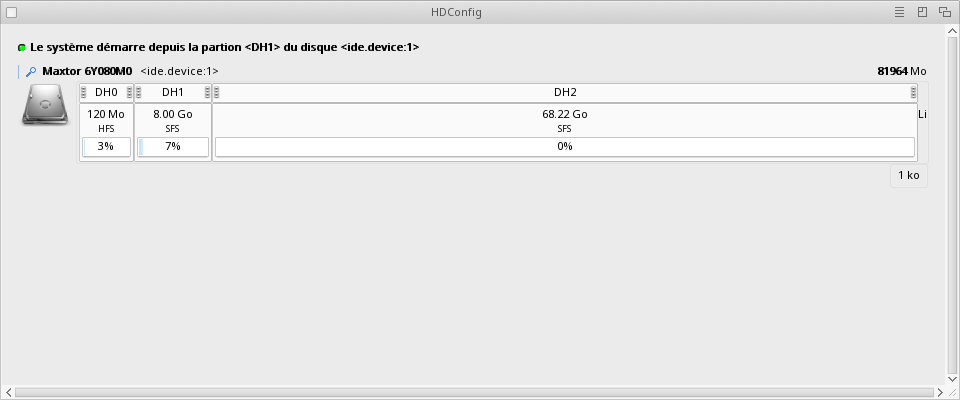

For what I can see, your partitioning is OK. It's crazy that it does not boot! I can only imagine that you did something wrong in ENV-variables and/or NVRAM.
Please post here folowing again: Environmentvariables, NVRAM and the device-alias:
> printenv
> devalias
Your HD is mounted to the 1st SATA-Port? If not, please do and for test put all other drives away (if there any).
-----------------------
If we don't find the reason, don't give up. There is a second way: we can do it with a forth-bootmenue. This should work in any case.
Here a output from my devalias! The block beginning with sata is interessting for you.The rest is not really necessary for booting.
Code:
0 > devalias devalias
keyboard /pseudo-hid/keyboard
mouse /pseudo-hid/mouse
eject-key /pseudo-hid/eject-key
pci0 /pci@0,f0000000
ipc /ipc
scca /ht/pci@1/mac-io/escc/ch-a
nvram /nvram
uni-n /u3
u3 /u3
dart /u3/dart
uni-mpic /u3/mpic
ui2c /u3/i2c
cpu0 /cpus/@0
cpu1 /cpus/@1
cpu2 /cpus/@2
cpu3 /cpus/@3
mac-io /ht/pci@1/mac-io
k2-mac-io /ht/pci@1/mac-io
macio-mpic /ht/pci@1/mac-io/mpic
via-pmu /ht/pci@1/mac-io/via-pmu
rtc /ht/pci@1/mac-io/via-pmu/rtc
sccb /ht/pci@1/mac-io/escc/ch-b
ki2c /ht/pci@1/mac-io/i2c
usb0 /ht/pci@1/@8
usb1 /ht/pci@1/@9
usb-1a /ht/pci@1/@8
usb-1b /ht/pci@1/@9
sata /ht/pci@5/k2-sata-root
k2-sata /ht/pci@5/k2-sata-root
hd /ht/pci@5/k2-sata-root/k2-sata@0/disk@0
ultra0 /ht/pci@5/k2-sata-root/k2-sata@0/disk@0
sd0 /ht/pci@5/k2-sata-root/k2-sata@0/disk@0
ultra1 /ht/pci@5/k2-sata-root/k2-sata@1/disk@0
sd1 /ht/pci@5/k2-sata-root/k2-sata@1/disk@0
enet /ht/pci@4/ethernet
k2-enet /ht/pci@4/ethernet
usb2 /ht/pci@2/@b
usb3 /ht/pci@2/@b,1
usb-2a /ht/pci@2/@b
usb-2b /ht/pci@2/@b,1
usb-2c /ht/pci@2/@b,2
uata /ht/pci@3/ata-6
cd /ht/pci@3/ata-6/disk@0
cd1 /ht/pci@3/ata-6/disk@1
fw /ht/pci@3/firewire
k2-uata /ht/pci@3/ata-6
k2-cd /ht/pci@3/ata-6/disk@0
k2-fw /ht/pci@3/firewire
pci /ht/pci@4
pci1 /ht/pci@1
pci2 /ht/pci@2
pci3 /ht/pci@3
pci4 /ht/pci@4
pci5 /ht/pci@5
pci6 /ht/pci@6
pci7 /ht/pci@7
wireless /ht@0,f2000000/pci@2/pci80211@1
sysclk /u3/i2c/i2c-hwclock@d2
vsp /vsp
veo0 /vsp/veo@f9080000
veo1 /vsp/veo@f9180000
veo2 /vsp/veo@f9280000
first-boot /ht@0,f2000000/pci@5/k2-sata-root@c/k2-sata
second-boot /ht@0,f2000000/pci@3/ata-6@d/disk
last-boot /ht@0,f2000000/pci@4/ethernet
screen /pci@0,f0000000/ATY,PitonParent@10/ATY,Piton_A@0
ok
And here my ENVVAR:
I use a boot-menue, so boot-device and boot-command should be hd:,\:tbxi and mac-boot in your case.
Code:
printen printenv printenv
-------------- Partition: common -------- Signature: 0x70 ---------------
little-endian? false false
real-mode? false false
auto-boot? true true
diag-switch? false false
fcode-debug? false false
oem-banner? false false
oem-logo? false false
use-nvramrc? false false
use-generic? false false
default-mac-address? false false
scroll-lock true true
skip-netboot? true false
real-base -1 -1
real-size -1 -1
load-base 0x800000 0x800000
virt-base -1 -1
virt-size -1 -1
logger-base -1 -1
logger-size -1 -1
pci-probe-mask -1 -1
screen-#columns 100 100
screen-#rows 40 40
selftest-#megs 0 0
boot-volume 3 3
gmt-offset 0 0
boot-device hd:,menue hd:,\:tbxi
boot-file
boot-screen screen screen
console-screen screen screen
diag-device enet enet
diag-file ,diags ,diags
input-device keyboard keyboard
output-device screen screen
input-device-1 /ipc /ipc
output-device-1 /ipc /ipc
mouse-device mouse mouse
oem-banner
oem-logo
nvramrc
boot-command boot mac-boot
default-client-ip
default-server-ip
default-gateway-ip
default-subnet-mask
default-router-ip
boot-script
aapl,pci Use PRINT-AAPL,PCI to view
ram-size 0x18000000
boot-args
aapl,tdm-units
platform-uuid 00000000 00001000 80000014 510cd328
skip-netboot
ok
Normaly on G5-OF there is no need for any NVRAM-definitions!
